Solar charge controllers in India
Engineered and manufactured in India by IIT alumni — for LiFePO4, Li-ion & lead acid systems.
In simple words: a charge controller is the device that sits between your solar panel and your battery. It controls how the battery is charged — so your costly battery stays healthy and lasts for years instead of failing early.
Size your system, then pick the controller
Every installation is different. Tell us your battery bank, your panels and your battery type — this tool works out the charging current you will actually get, how long a charge will take, and which Systellar controller fits. It checks the whole range, including the models we build to order.
Your system
We will energise the diagram and size the whole system for you.
Sizing your system…
How well the best model in our range fits what you have described.
What we would suggest
Read from the numbers you entered — the points an engineer here would raise if you called us.
Recommended controller
—Plan the panel layout
Optional — everything below is worked out for youModels ruled out, and why
Want this checked by an engineer?
These figures are a sizing estimate from the numbers you entered. Send them to us and we will confirm the exact model, the wiring layout and any accessories you need — free of charge, before you buy. We design and manufacture every controller here in India, so we can also build to a specification you cannot find off the shelf.
How these numbers are worked out
- Charging current = array watts × MPPT conversion efficiency ÷ battery charging voltage, then capped at the controller's rated current. PWM controllers cannot step voltage down, so they are modelled on panel current instead — which is why they harvest less from the same array.
- Charging voltage per 12 V block: LiFePO4 14.6 V · Li-ion/NMC 12.6 V · lead-acid 14.4 V.
- Usable capacity: 80% of rated Ah for lithium, 50% for lead-acid — the depth of discharge each chemistry tolerates without shortening its life.
- Charging efficiency: 97% lithium, 85% lead-acid (lead-acid loses more to heat and gassing near the top of the charge).
- Real-world derate: 80% of nameplate array output for irradiance, panel temperature, dust and cable loss. "Good sun" means roughly 4.5 peak-sun-hours a day, a fair all-India annual average.
- The string has to clear a floor as well as a ceiling. Ceiling: panel Voc is highest on a cold, clear morning, so we multiply string Voc by 1.10 and require it to stay under the controller's input limit — that is the moment a controller gets damaged, not midday. Floor: Vmp falls about 16% as a panel heats to rooftop temperature, and an MPPT is a step-down converter, so if hot Vmp drops below the battery's charging voltage it simply stops charging on the hottest afternoons. We therefore require string Voc at rating to be at least 1.45 × the charging voltage for MPPT, and 1.15 × for PWM, which has no converter and only needs its Voc to clear the battery.
- Wiring is chosen as the longest series string that fits that window and divides your panel count evenly — fewer parallel strings means less current, thinner cable and lower losses. If no even split fits, we say so rather than quietly recommending unequal strings.
- Figures are indicative. Site shading, panel orientation, cable runs and battery age all move the result.
MPPT solar charge controller comparison
Four MPPT models cover every off-grid system we serve, from a single 12V battery to a 120V industrial bank. You can see MPPT-HV-50A (IGBT based) model for higher battery bank voltages. Work down from your battery bank voltage and array size — those two figures decide the controller, and everything else follows. Scroll the table sideways to see all four models. Full specifications for every model, including our PWM range and prices, are further down this page.
| Compare |
 12V / 24V · 25A & 50A · Voc 85V
Entry 12V–24V
|
12V–48V · 25A & 50A · Voc 175V
Entry 12V–24V–36V–48V
|
||
|---|---|---|---|---|
| Best suited to | Small homes and off-grid 12V / 24V systems | Homes and small commercial sites running 36V / 48V banks | Large commercial and industrial installations | High-voltage industrial, telecom and large off-grid plants |
| Battery bank voltage | 12V / 24VAuto-detect | 12V / 24V / 36V / 48VAuto-detect | 12V / 24V / 36V / 48VField programmable | 48V / 60V / 72V / 96V / 120VField programmable |
| Max charge current | 25A or 50A | 25A or 50A | 50A or 75A | 60A |
| Max solar input (Voc) | 85VAbsolute max 100V | 175VAbsolute max 200V | 175VAbsolute max 200V | 106V – 265VAbsolute max 300V |
| Max solar array | 12V — 375 / 750 Wp24V — 750 / 1,500 Wp25A / 50A model | 12V — 375 / 750 Wp24V — 750 / 1,500 Wp36V — 1,125 / 2,250 Wp48V — 1,500 / 3,000 Wp25A / 50A model | 12V — 800 / 1,200 Wp24V — 1,600 / 2,400 Wp36V — 2,400 / 3,600 Wp48V — 3,200 / 4,800 Wp50A / 75A model | 48V — 3,840 Wp60V — 4,800 Wp72V — 5,760 Wp96V — 7,680 Wp120V — 9,600 Wp |
| Conversion efficiency | 12V — 97.3%24V — 97.8% | 12V — 97.1%24V — 97.1%36V — 97.4%48V — 97.8% | 97.3% – 98.8%Depends on bank voltage | Up to 96%High-voltage conversion carries more switching loss |
| DC load output | Up to 20AAlways-on, dusk-to-dawn or 2–14 h timer | Up to 20AAlways-on, dusk-to-dawn or 2–14 h timer | Up to 40AAlways-on, dusk-to-dawn or 2–14 h timer | —Not offered on this model |
| Power Saver relay | Optional PowerSaver boxSold separately | Optional PowerSaver boxSold separately | Built in250V AC / 20A | Built in250V AC / 20A · handles ~4 kW |
| Display & setup | 16×2 backlit LCD2 rows on one screen · 3-key panel | 16×2 backlit LCD2 rows on one screen · 3-key panel | 128×64 graphic LCD8 rows on one screen · 5-key panel | 128×64 graphic LCD8 rows on one screen · 5-key panel |
| Battery chemistries | Lead acid (SMF / FLA / tubular / gel), Li-ion, LiFePO4, Ni-CdFactory pre-set | Lead acid (SMF / FLA / tubular / gel), Li-ion, LiFePO4, Ni-CdFactory pre-set | Lead acid (SMF / FLA / tubular / gel), Li-ion, LiFePO4, Ni-CdField programmable | Lead acid (SMF / FLA / tubular / gel), Li-ion, LiFePO4, Ni-CdField programmable |
| Battery temperature sensor | Optional accessory3 m cable · temperature-compensated charging for lead-acid batteries | Optional accessory3 m cable · temperature-compensated charging for lead-acid batteries | Optional accessory3 m cable · temperature-compensated charging for lead-acid batteries | Optional accessory3 m cable · temperature-compensated charging for lead-acid batteries |
| Remote monitoring | Optional RS-485 Modbus cardSold separately | Optional RS-485 Modbus cardSold separately | Optional RS-485 Modbus cardSold separately | Optional RS-485 Modbus cardSold separately |
| Warranty & build | 2 year1.4 kg (25A) · 2.5 kg (50A)190 × 160 × 80 mm (H×W×D) | 2 year1.4 kg (25A) · 2.5 kg (50A)190 × 160 × 80 mm (H×W×D) | 2 year5.5 kg300 × 225 × 120 mm (H×W×D) | 2 year5.5 kg280 × 290 × 140 mm (H×W×D) |
| Buy online |
Choosing a current rating: divide your total panel wattage by your battery bank voltage. If the result is under 25, the 25A model is enough; between 25 and 50, choose the 50A model. Size the panel string so its open-circuit voltage stays below the controller limit at the coldest temperature your site sees.
Need a model that is not listed here — CC-MPPT-HV-50A, PWM-PPL, CC-HLS or a controller for IoT? Call +91 95680 04455 or send an enquiry and we will quote it.
MPPT & PWM Solar Charge Controllers in India — 12V to 240V | LiFePO4, Li-ion & Lead Acid
India’s Most Advanced MPPT Solar Charge Controllers — Engineered for Indian Conditions.
A solar charge controller is the brain of any off-grid or hybrid solar power system. Its primary job is to regulate the voltage and current flowing from your solar panels to your batteries — protecting them from overcharging, deep discharge, and reverse current flow. Get it wrong and your ₹20,000 battery bank fails in two years. Get it right and your system runs reliably for a decade. Systellar Innovations, founded by IIT alumni and ISO 9001:2015 certified, manufactures MPPT and PWM solar charge controllers in Meerut, Uttar Pradesh — the heart of North India. Our controllers support every battery chemistry in common use today: LiFePO4 (Lithium Iron Phosphate), Lithium-ion, Lead Acid (Flat Cell, Tubular, Gel, SMF), and Nickel Cadmium. Battery voltages range from 12V to 240V with charging currents from 2A (IoT) to 75A (Gen6 industrial). Every unit is designed and assembled in-house with zero dependency on imported sub-systems.
Systellar Innovations is headquartered in Uttar Pradesh — giving us an inherent advantage in servicing North India’s solar market. We understand the dust, heat, and power-cut conditions specific to UP, Bihar, Rajasthan, Haryana, Delhi NCR, and the Himalayan foothills. Our controllers are rated for ambient temperatures from 0°C to 45°C and humidity up to 95%, and are designed for indoor, well-ventilated mounting — conditions that routinely challenge controllers built for milder climates. For system integrators, contractors, and end-users across North and Central India, we offer the fastest turnaround on orders, technical support in Hindi, and bulk pricing directly from the factory.

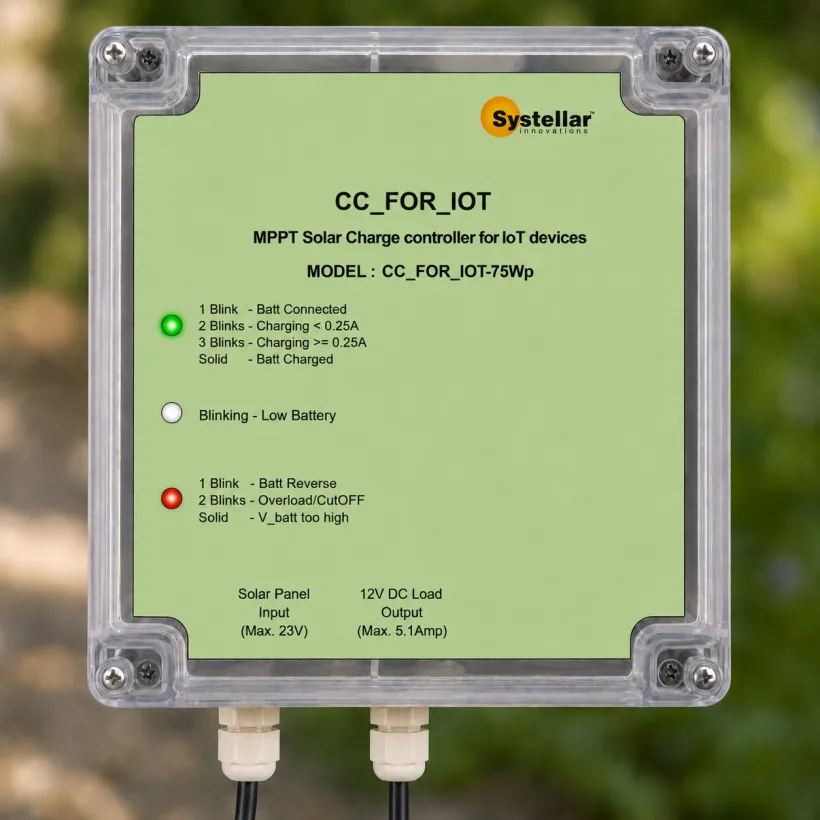

MPPT solar charge controller for IoT devices
A small charge controller for IoT deployment in the field where mains power is not available. Field instruments can be made fully solar powered. The battery may be installed inside an IP-67 enclosure for protection from rain and dust.
| Battery nominal voltage | 12.8V |
|---|---|
| Maximum charging current | Models available for 1.2A / 5A / 8A |
| Battery type | LiFePO4 |
| Maximum solar panel capacity | 20Wp / 75Wp / 120Wp |
| Solar panel open-circuit voltage | 20V – 22V |
| DC output | Yes |
| Power saver relay drive output | No |

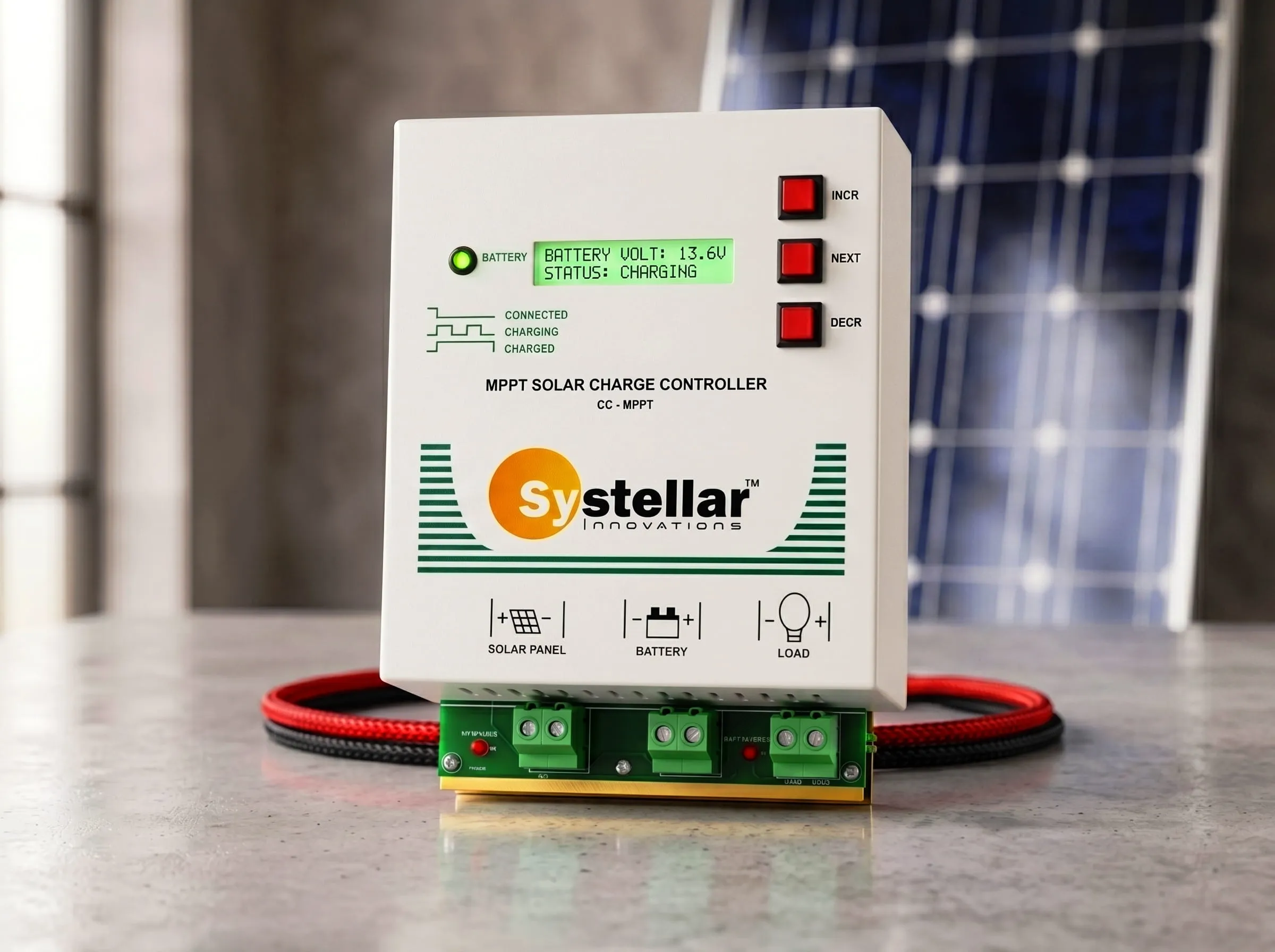

CC-MPPT-Compact solar charge controller
Cost-effective MPPT solar charge controller with a 2-line LCD display. All protections provided for PV, battery and DC load.
| Specification | Compact-100-25A | Compact-100-50A | Compact-200-25A | Compact-200-50A |
|---|---|---|---|---|
| Battery nominal voltage | 12V / 24V | 12V / 24V | 12V / 24V / 36V / 48V | 12V / 24V / 36V / 48V |
| Maximum charging current | 25A | 50A | 25A | 50A |
| Battery type | Lead-acid / Li-ion / LiFePO4 / NiCd (factory set) | Lead-acid / Li-ion / LiFePO4 / NiCd (factory set) | Lead-acid / Li-ion / LiFePO4 / NiCd (factory set) | Lead-acid / Li-ion / LiFePO4 / NiCd (factory set) |
| Maximum solar panel capacity | 375Wp @12V, 750Wp @24V | 750Wp @12V, 1500Wp @24V | 375 / 750 / 1125 / 1500Wp | 750 / 1500 / 2250 / 3000Wp |
| Solar panel open-circuit voltage | Max. 85V | Max. 85V | Max. 175V | Max. 175V |
| DC output | Yes | Yes | Yes | Yes |
| Power saver relay drive output | Optional accessory | Optional accessory | Optional accessory | Optional accessory |
CC-MPPT-Gen6 solar charge controller
MPPT charge controller with a large 8-row × 24-char LCD display showing all charging parameters on one screen. Higher charging current than the Compact models, with all protections for PV, battery and DC load, plus Solar Management Unit (SMU) features to control external inverters.
| Specification | Gen6-200-50A | Gen6-200-75A |
|---|---|---|
| Battery nominal voltage | 12V / 24V / 36V / 48V | 12V / 24V / 36V / 48V |
| Maximum charging current | 50A | 75A |
| Battery type | Lead-acid / Li-ion / LiFePO4 / NiCd (field programmable) | Lead-acid / Li-ion / LiFePO4 / NiCd (field programmable) |
| Maximum solar panel capacity | 800 / 1600 / 2400 / 3200Wp | 1200 / 2400 / 3600 / 4800Wp |
| Solar panel open-circuit voltage | Max. 175V | Max. 175V |
| DC output | Yes | Yes |
| Power saver relay drive output | Built-in | Built-in |
CC-MPPT-HV-300 solar charge controller
High Voltage MPPT Solar Charge Controller with large LCD display, suitable for industrial and commercial solar applications with high-voltage battery banks. Supports multiple battery chemistries and provides advanced MPPT charging for maximum energy harvest.
| Battery nominal voltage | 48V / 60V / 72V / 96V / 120V |
|---|---|
| Maximum charging current | 60A |
| Battery type | Lead-acid (SMF / Flooded / Tubular / Gel) / Li-ion / LiFePO4 / NiCd (field settable) |
| Maximum solar panel capacity | 3840Wp @48V, 4800Wp @60V, 5760Wp @72V, 7680Wp @96V, 9600Wp @120V |
| Solar panel open-circuit voltage | 106V to 265V (all bank voltages) |
| DC output | No |
| Power saver relay drive output | Built-in |

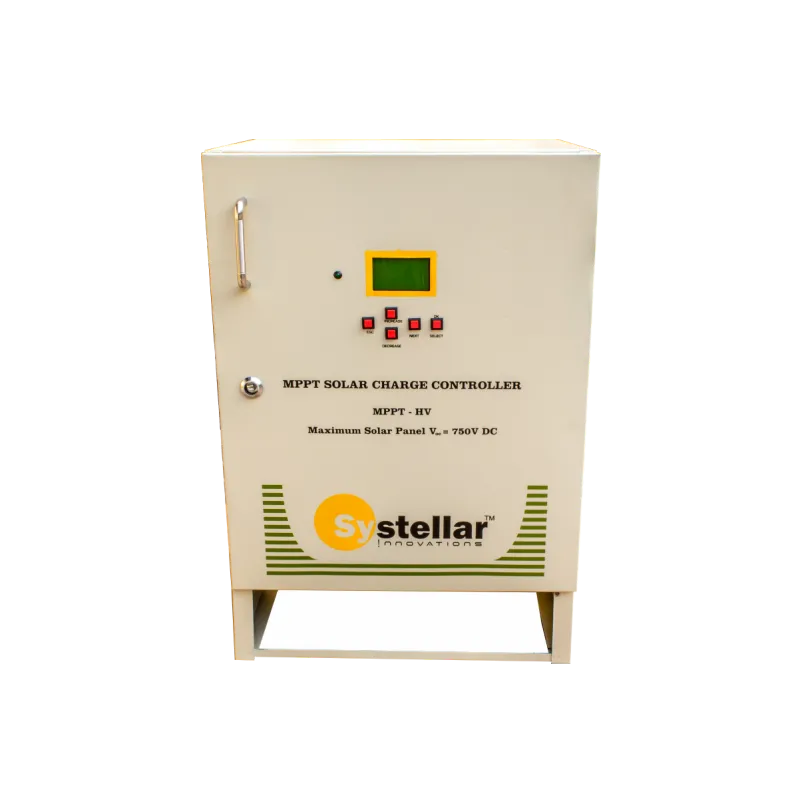

CC-MPPT-HV-50A solar charge controller
IGBT-based MPPT charge controller with a large 8-row × 24-char LCD display showing all charging parameters on one screen. Rugged design for industrial applications and high battery-bank voltages.
| Battery nominal voltage | 72V / 96V / 120V / 144V / 180V / 192V / 240V |
|---|---|
| Maximum charging current | 50A |
| Battery type | Lead-acid / Li-ion / LiFePO4 / NiCd (factory set) |
| Maximum solar panel capacity | 4800Wp @72V, 6400Wp @96V, 8000Wp @120V, 9600Wp @144V, 12,000Wp @180V, 12,800Wp @192V, 16,000Wp @240V |
| Solar panel open-circuit voltage | Max. 750V |
| DC output | No |
| Power saver relay drive output | Optional accessory |
Reliable, budget-friendly PWM controllers
Systellar Innovations provides a reliable selection of PWM solar charge controllers that offer a cost-effective solution for basic solar power systems. These controllers regulate battery charging by maintaining a steady voltage level, making them suitable for small-scale solar setups such as street lighting, home backup systems, and rural applications.
Designed for simplicity and durability, each PWM solar charge controller in our lineup ensures consistent performance with features like overcharge protection, reverse polarity safety, and temperature compensation. Systellar Innovations’ PWM range is ideal for users looking for dependable and budget-friendly solar charge regulators / battery charge controllers in varied Indian conditions.

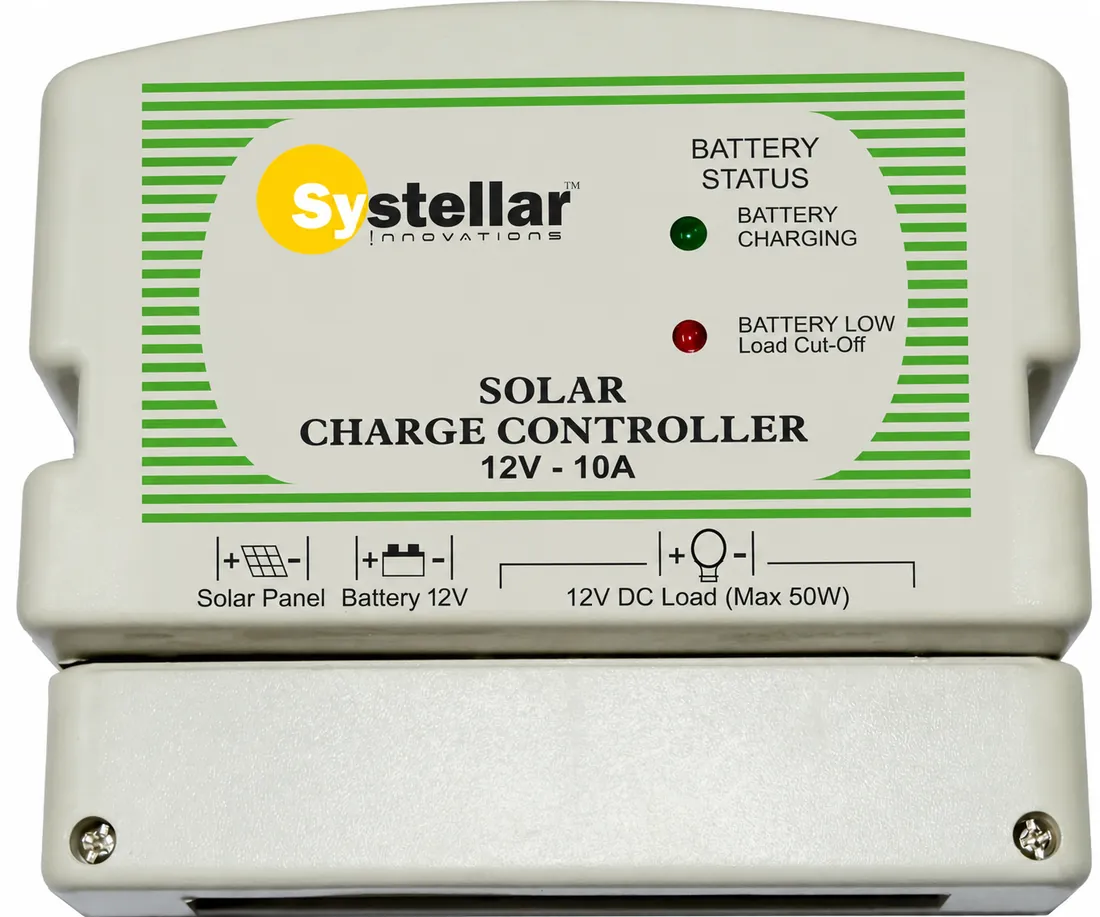

CC-HLS-12V-10A PWM solar charge controller
An ultra-low-cost yet dependable solution for managing solar power in home lighting systems and solar street lights. Designed for single 12V battery systems, it supports up to 10A charging current, making it ideal for various applications.
| Battery nominal voltage | 12V |
|---|---|
| Maximum charging current | 10A |
| Battery type | Lead-acid Flat cell / Tubular / SMF (jumper selectable). Separate model for Li-ion, LiFePO4. |
| Maximum solar panel capacity | 150Wp |
| Solar panel open-circuit voltage | 20V – 25V |
| DC output | Yes |
| Power saver relay drive output | No |

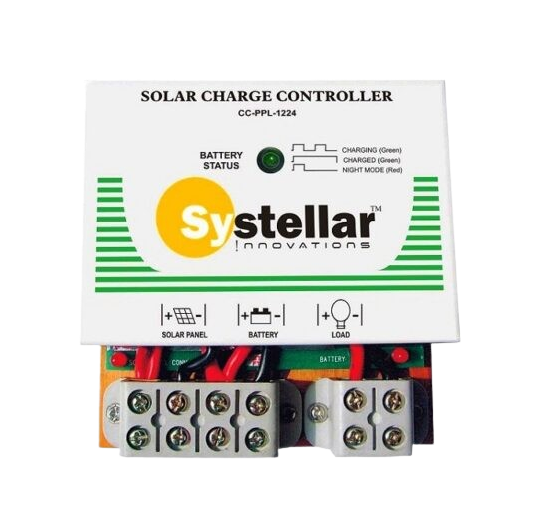

PWM-PPL solar charge controller
Systellar’s PPL series PWM solar charge controllers are the perfect choice for charging 12V, 24V, 36V or 48V battery banks with a maximum charge current of 20A or 40A. Engineered for efficiency and simplicity, they are ideal for powering DC devices, converting standard inverters into solar inverters, and more.
| Specification | PPL-12/24V-20A | PPL-36V-20A | PPL-36V-40A | PPL-48V-20A |
|---|---|---|---|---|
| Battery nominal voltage | 12V, 24V | 36V | 36V | 48V |
| Maximum charging current | 20A | 20A | 40A | 20A |
| Battery type | Lead-acid Flat cell / Tubular / SMF (jumper selectable). Separate model for Li-ion, LiFePO4. | Lead-acid Flat cell / Tubular / SMF (jumper selectable). Separate model for Li-ion, LiFePO4. | Lead-acid Flat cell / Tubular / SMF (jumper selectable). Separate model for Li-ion, LiFePO4. | Lead-acid Flat cell / Tubular / SMF (jumper selectable). Separate model for Li-ion, LiFePO4. |
| Maximum solar panel capacity | 300Wp, 600Wp | 900Wp | 1800Wp | 1200Wp |
| Solar panel open-circuit voltage | 20V–25V, 37V–51V | 48V–70V | 48V–70V | 57V–95V |
| DC output | Yes | Yes | Yes | Yes |
| Power saver relay drive output | Yes | Yes | Yes | Yes |

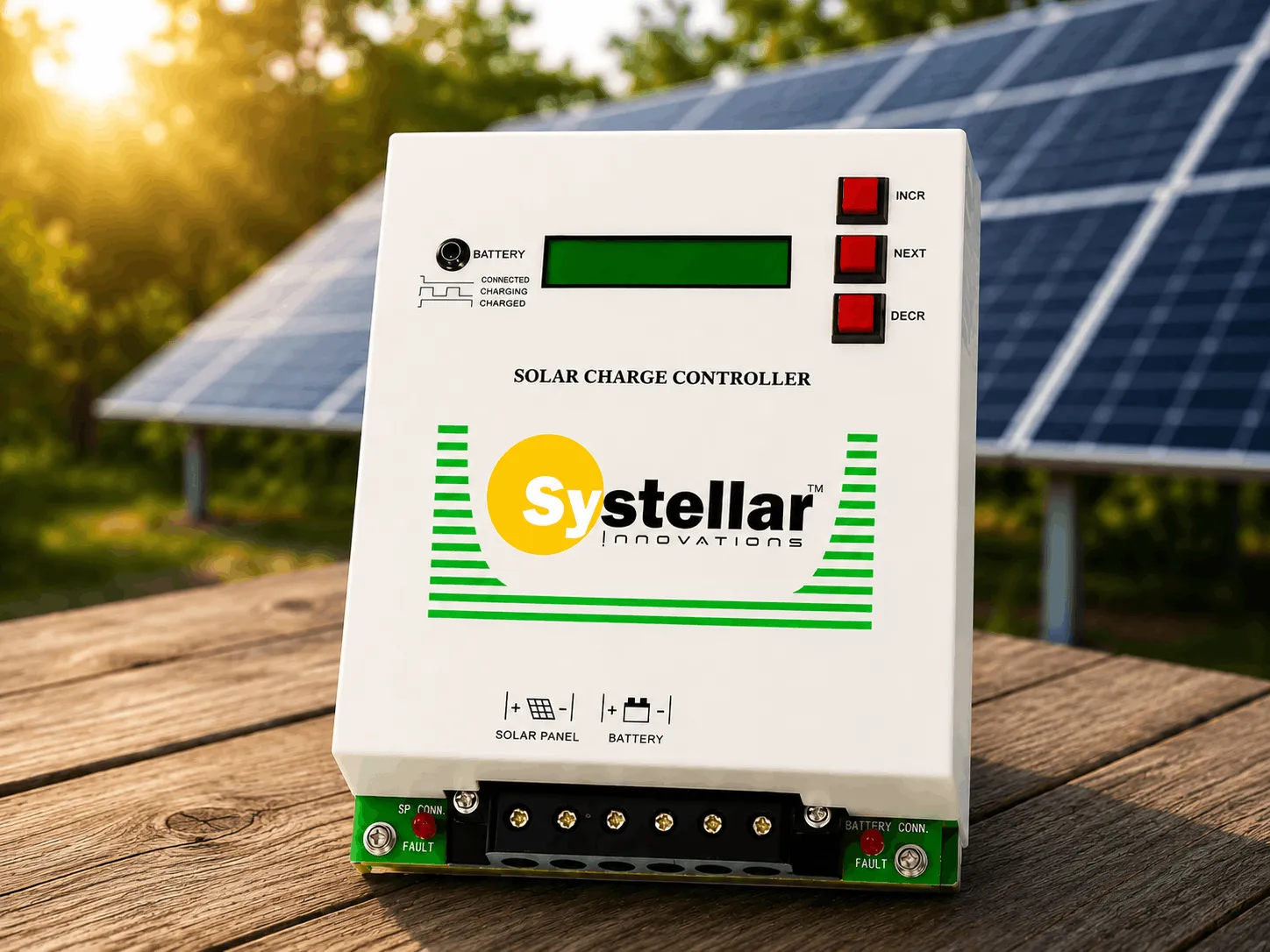

CC-PWM-HV range of PWM solar charge controllers
The CC-PWM-HV series is the perfect solution for charging batteries in existing inverters installed at petrol pumps, institutes, offices and schools. Designed to utilise solar power effectively, this range has helped hundreds of customers across India reduce electricity bills and embrace renewable energy since 2012.
| Specification | CC-PWM-HV · 20A | CC-PWM-HV · 40A |
|---|---|---|
| Battery nominal voltage | 72V / 96V / 120V / 144V / 180V / 192V / 240V | 72V / 96V / 120V / 144V / 180V / 192V / 240V |
| Maximum charging current | 20A | 40A |
| Battery type | Lead-acid / Li-ion / LiFePO4 (factory set) | Lead-acid / Li-ion / LiFePO4 (factory set) |
| Maximum solar panel capacity | 1800 / 2400 / 3000 / 3600 / 4500 / 4800 / 6000Wp | 2400 / 3600 / 4800 / 6000 / 7200 / 9000 / 9600 / 12000Wp |
| Solar panel open-circuit voltage | 79–100 / 120–150 / 140–200 / 160–250 / 220–300 / 240–350 / 280–400 V | 57–95 / 79–100 / 120–150 / 140–200 / 160–250 / 220–300 / 240–350 / 280–400 V |
| DC output | No | No |
| Power saver relay drive output | Yes | Yes |
PWM & MPPT solar charge controller price in India — Systellar range
Systellar MPPT and PWM solar charge controllers start at ₹5,999 (CC-MPPT-Compact-100, 12V / 24V) and run to ₹19,999 for the 60A high-voltage CC-MPPT-HV-300. All prices below include GST and are for delivery anywhere in India.
| Model | Battery voltage & current | Price (incl. GST) | Availability |
|---|---|---|---|
| CC-MPPT-Compact-100 | 12V / 24V · 25A / 50A | from ₹5,999 | Buy Online → |
| CC-MPPT-Compact-200 | 12V / 24V / 36V / 48V · 25A / 50A | from ₹6,599 | Buy Online → |
| CC-PWM-HV range | 72V–240V · 40A | ₹8,799 – ₹11,199 | Buy Online → |
| CC-MPPT-Gen6-200 | 12V / 24V / 36V / 48V · 50A / 75A | ₹9,899 – ₹12,999 | Buy Online → |
| CC-MPPT-HV-300 | 48V / 60V / 72V / 96V / 120V · 60A | ₹19,999 | Buy Online → |
| CC-MPPT-HV-50A | 48V–240V · 50A | On enquiry | Call +91 95680 04455 |
| CC-HLS-12C-10A | 12V · 10A PWM | On enquiry | Call +91 95680 04455 |
| PWM-PPL | 12V–48V PWM | On enquiry | Call +91 95680 04455 |
| CC_FOR_IOT | 12.8V · 1.2A / 5A / 8A | On enquiry | Call +91 95680 04455 |
Four models can be bought online directly from our Shopify store. The remaining models are built to order and quoted on request — call +91 95680 04455 or send an enquiry. Pan-India shipping is available. For export enquiries please see our export page.
Solar charge controller — common questions
What is a solar charge controller?
A solar charge controller regulates the voltage and current flowing from your solar panels into the battery bank. It prevents overcharging, over-discharge and reverse current at night, protecting the battery and drawing the most usable energy from your panels. Systellar manufactures both MPPT and PWM solar charge controllers for 12V to 240V systems.
MPPT vs PWM — which solar charge controller should I choose?
An MPPT controller tracks the panel’s maximum power point and typically harvests 15–30% more energy, which suits larger systems or any setup where panel voltage is higher than battery voltage. A PWM controller is a simpler, lower-cost choice for small, voltage-matched systems. See our full MPPT vs PWM solar charge controller comparison.
What size (how many amps) solar charge controller do I need?
Divide your total panel wattage by the battery voltage to get the charging current, then add about 25% headroom. For example, 600W of panels on a 12V battery works out to roughly 50A. Our range spans 2A to 75A across 12V, 24V, 48V and high-voltage banks — or use the Help me choose tool above.
How much does a solar charge controller cost in India?
Price depends on the type (PWM vs MPPT), current rating and battery voltage. Systellar supplies everything from budget PWM units to high-current 75A MPPT and high-voltage models; four models are available to buy online and the rest on request. Share your specs for a quote, with bulk pricing on orders of 10 units or more.
Which MPPT solar charge controller is best for a 12V, 24V or 48V system?
For compact 12V–48V systems the CC-MPPT-Compact (25A/50A) and CC-MPPT-Gen6 (50A/75A) are popular choices; for high-voltage battery banks up to 240V, see the CC-MPPT-HV-50A.
Do you supply solar charge controllers across India?
Yes. Systellar is an Indian manufacturer (Made in India, IIT-alumni founded) supplying homes, businesses, industrial and OEM buyers nationwide, with bulk pricing for 10+ units.
Not sure which controller you need?
Tell us your battery voltage, panel wattage and battery type — we’ll recommend the right model and send a quote, with bulk pricing for orders of 10 units or more.
