Overview

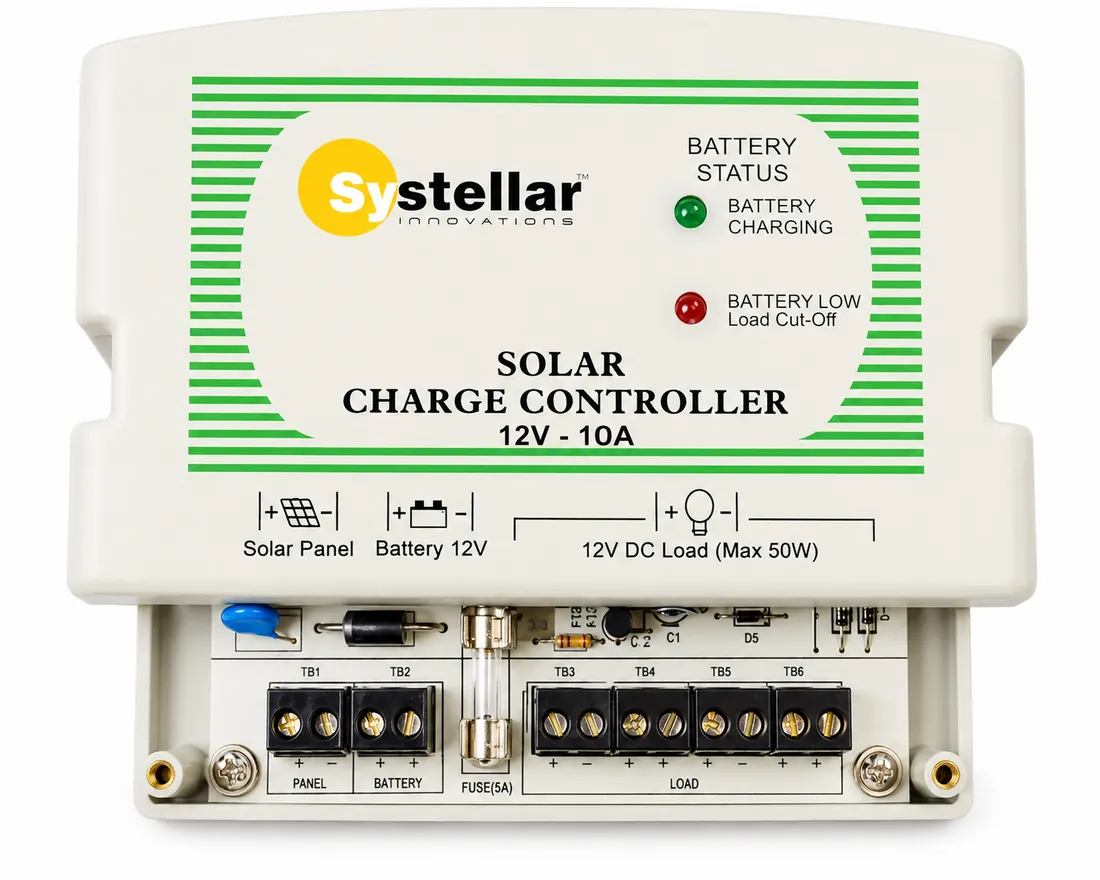

Meet the HLS Series PWM Solar Charge Controller from Systellar Innovations — an ultra-low-cost yet dependable controller for home lighting systems, solar street lights and any 12V DC lighting you want to run automatically. Built for single 12V battery systems, it supports up to 10A charging current and can switch a 12V DC light of up to 50W Always-On or automatically from dusk to dawn.
Why Choose the CC-HLS-12V-10A?
- Cost-Effective Solution: Combines affordability with reliable performance.
- Versatile Applications: Perfect for home lighting systems, solar street light setups, and more.
- Effortless Operation: Easy-to-use jumper settings for flexible DC load control.
Key Features
- Microprocessor-Controlled Design: Ensures precision with zero voltage drop.
- 3-Stage Battery Charging: Extends battery life with intelligent charging modes.
- Multiple Battery Compatibility: Supports Lead-acid, Li-ion, and LiFePO4 battery types.
- Flexible Load Operation: Jumper settings for Dusk-to-Dawn or Always-On functionality.
- USB Charging Optional: Ideal for mobile devices.
- High Load Capacity: Can continuously power up to 50W DC loads through 4 DC terminals.
Automatic Dusk-to-Dawn Light Control
The CC-HLS is more than a charge controller — its DC load terminal can switch a 12V DC LED light of up to 50W on and off for you, with no separate timer or photocell. A simple jumper selects how the load runs:
- Always ON: the connected light stays powered whenever the battery has charge.
- Dusk-to-Dawn: the light comes on automatically at dusk and switches off at dawn — true hands-free solar lighting.
That makes it an easy, low-cost dusk-to-dawn light controller for anyone who already has a 12V DC LED light — ideal for solar lighting and security lighting around homes, farms, gates, compounds and remote sites.
Where Can It Be Used?
- Home Lighting Systems: reliable DC power for indoor lights and fans.
- Security Lighting: automatic dusk-to-dawn 12V DC LED lighting for gates, yards, compounds and farms.
- Solar Street & Garden Lights: hands-free on-at-dusk, off-at-dawn operation.
- Standalone 12V DC LED Light: run a light you already own (up to 50W) without a separate photocell or timer.
- Small Solar Systems: ideal for setups needing up to 10A charging capacity.
Why Systellar Innovations?
As a leader in solar technology, we offer:
- High-Quality Design: Built with precision for long-term performance.
- Custom Solutions: Tailored to meet your unique energy needs.
- Affordable Pricing: Delivering value without compromising on quality.
Get Yours Today!
Upgrade your solar systems with the CC-HLS-12V-10A PWM Solar Charge Controller. Contact us now for more information or to place an order.
Call: +91-9568004455
Email: info@systellar.in
Technical Specifications
| Product Name | Solar charge controller for Home Lighting System |
| Model Name | CC–HLS-12V-10A |
| Charger technology | PWM (Pulse Width Modulation) |
| Nominal Battery voltage | 12V DC |
| Maximum charging current | 10A |
| Maximum Solar Panel Input Voc | 35 Volts DC |
| Battery charging stages | Boost, Absorption and Trickle charging |
| Maximum DC Load current (total) | 5 Amp (protected with fuse) |
| DC load Low battery disconnect | Battery voltage less than 10.5 V |
| DC load Low battery restore voltage | Battery voltage more than 12V |
| Protections | Reverse polarity protection for battery and solar panel, battery overcharge / deep discharge protection, PV reverse current flow protection. |
| Humidity Range | 0 to 95% (non-condensing) |
| Operating Temperature range | 0 to 60 °C |
| Product Warranty | 1 Year against manufacturing defect |
| Certification | ISO 9001:2015 (company-wide) · Made in India |
Frequently Asked Questions (FAQ)
What is the CC-HLS-12C-10A used for?
It is an ultra-low-cost PWM solar charge controller for single 12V battery systems, supporting up to 10A charging current. It is ideal for home lighting systems, solar street lights and other small solar setups.
Which battery types does it support?
It works with Lead-acid, Li-ion and LiFePO4 batteries, using a microprocessor-controlled 3-stage charging profile to extend battery life.
How much DC load can it power?
It can continuously power up to 50W of DC load through its four DC output terminals — suitable for DC lights and fans.
Can it run a solar street light automatically?
Yes. Jumper settings let you choose Dusk-to-Dawn automatic operation or Always-On mode, so it can switch the load on at night and off at dawn without any manual intervention.
Can I connect my own 12V DC LED light for dusk-to-dawn or security lighting?
Yes. The DC load terminal runs a 12V DC LED light of up to 50W in two jumper-selectable modes — Always ON, or automatic Dusk-to-Dawn (on at night, off at dawn). No separate photocell or timer is needed, so the CC-HLS doubles as a simple, low-cost controller for solar lighting and security lighting wherever you already have a 12V DC LED light.
PWM or MPPT — is a PWM controller enough for my system?
For small 12V systems where the solar panel voltage is close to the battery voltage, a PWM controller like the CC-HLS is a reliable and very cost-effective choice. MPPT controllers add value mainly on larger arrays or high-voltage panels.
Does it support USB charging?
USB charging is available as an option, making it convenient for charging mobile devices directly from the solar system.
Note: product specifications are subject to change for continuous product enhancement. Please contact Systellar for the latest specifications.
